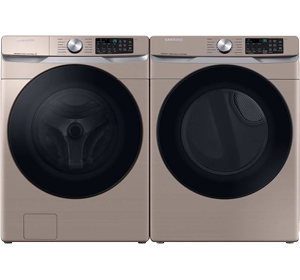

Samsung Large Capacity Smart Front Load Washer with Super Speed Wash and Smart Electric Dryer
Search our help content
Search
Popular Topics
Your reference is:
Please quote your reference number if you need to contact us about your problem. It will help us pick up where you left off.
For an optimised experience at this window size, please refresh your browser.
For an optimised experience at this window size, please refresh your browser.
Dryer
Dryer
Drum capacity
7.5 cu. ft.
212.38L
212.38L
Washer
Washer
Soil levels
Washer: Soil levels: heavy, medium heavy, normal, medium low, light
Wash cycles
12x Preset washing cycles
Wash cycles: eco cold wash, normal, heavy duty, permanent press, steam sanitize, bedding, bedding / waterproof, activewear, wool, quick wash, rinse + spin, delicates, towels, colors, Self Clean+, downloaded, outdoor, denim, steam allergen, steam normal, power steam, steam whites, steam bulky, power rinse
Dry cycles: downloaded
Steam drying cycles: steam refresh, wrinkle away, steam sanitize+
Sensor drying cycles: eco normal, wool, shirts, denim, normal, heavy duty, towels, perm press (permanent press), bedding, delicates, sanitize, activewear, jeans, low temp
Manual drying cycles: time dry, air fluff, quick dry, rack dry
Wash cycles: eco cold wash, normal, heavy duty, permanent press, steam sanitize, bedding, bedding / waterproof, activewear, wool, quick wash, rinse + spin, delicates, towels, colors, Self Clean+, downloaded, outdoor, denim, steam allergen, steam normal, power steam, steam whites, steam bulky, power rinse
Dry cycles: downloaded
Steam drying cycles: steam refresh, wrinkle away, steam sanitize+
Sensor drying cycles: eco normal, wool, shirts, denim, normal, heavy duty, towels, perm press (permanent press), bedding, delicates, sanitize, activewear, jeans, low temp
Manual drying cycles: time dry, air fluff, quick dry, rack dry
Body
Body
Dimensions (inches)
27x38.7x31.3 (WxHxD)
Weight (lbs)
Washer: 200.6
Dryer: 119
Dryer: 119
Design
Design
Door
Scratch-resistant tempered glass door
Black deco+glass
Handle: inner
Black deco+glass
Handle: inner
Connectivity
Connectivity
Display
Display
Features
Features
Features
Washer:
Super speed wash: 28 minutes
Steam
Antimicrobial technology
Internal water heater
End of cycle signal
23x Wash cycles
Detergent: bleach, main, softener
Cycle time (AHAM 8lbs): 45 min
Cycle time (super speed): 28 min
Dryer:
Sensor dry
Steam Sanitize+
Interior drum light
Lint filter indicator
Smart care
Vent blockage test
Single heater
4-Way venting system
End of cycle signal
Dry Levels: more dry, normal - more dry, normal dry, normal - less dry, less dry, damp dry
Cycle time (AHAM 8lbs): 39 min
Jog dial
Super speed wash: 28 minutes
Steam
Antimicrobial technology
Internal water heater
End of cycle signal
23x Wash cycles
Detergent: bleach, main, softener
Cycle time (AHAM 8lbs): 45 min
Cycle time (super speed): 28 min
Dryer:
Sensor dry
Steam Sanitize+
Interior drum light
Lint filter indicator
Smart care
Vent blockage test
Single heater
4-Way venting system
End of cycle signal
Dry Levels: more dry, normal - more dry, normal dry, normal - less dry, less dry, damp dry
Cycle time (AHAM 8lbs): 39 min
Jog dial
Reversible door
Yes - dryer
Stackable
✓
Yes
Motor
Washer: digital inverter motor
Drum type
Washer: Swirl+
Warranty
Warranty
Device warranty
24 months
Extended warranty: click here
Extended warranty: click here
Compatibility
Compatibility
Smart assistant compatibility
SmartThings
Voice compatible:
Bixby
Amazon Alexa
Google Assistant
Voice compatible:
Bixby
Amazon Alexa
Google Assistant
Power
Power
Amperage
Washer: 15A
Dryer: 30A
Dryer: 30A
Power source
Electric
Power supply
Washer: AC 120V 60Hz
Dryer: AC 240V 60Hz
Dryer: AC 240V 60Hz
Washing Capacity
Washing Capacity
Washing capacity
4.5 cu. ft.
127.43L
127.43L
Cycle
Cycle
Option list
Washer: 9
Dryer: 10
Washer options: spin only, super speed, smart control, pre-soak, delay end: (24 hrs), steam, alarm off
Dryer options: mixed load bell (damp alert), wrinkle prevent, adjust time (up), adjust time (down), eco dry, sound on / off, smart control, smart care, child lock, damp alert, alarm off, interior light
Dryer: 10
Washer options: spin only, super speed, smart control, pre-soak, delay end: (24 hrs), steam, alarm off
Dryer options: mixed load bell (damp alert), wrinkle prevent, adjust time (up), adjust time (down), eco dry, sound on / off, smart control, smart care, child lock, damp alert, alarm off, interior light
Function
Function
Energy Performance
Energy Performance
Connection type
Connection type
Variable temperature control
5x Temperature levels:
Washer: hot, warmer, warm, cool, cold
Dryer: high, medium high, medium, medium low, low
Washer: hot, warmer, warm, cool, cold
Dryer: high, medium high, medium, medium low, low
Certification
Certification
Certification
Washer: ENERGY STAR Most Efficient, ADA compliant
Dryer: ADA compliant
Dryer: ADA compliant
