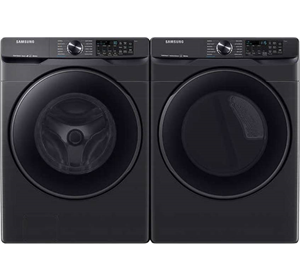

Samsung 5.0 cu. ft. Smart Washer and 7.5 cu. ft. Electric Dryer with Steam Sanitize+
Search our help content
Search
Popular Topics
Your reference is:
Please quote your reference number if you need to contact us about your problem. It will help us pick up where you left off.
For an optimised experience at this window size, please refresh your browser.
For an optimised experience at this window size, please refresh your browser.
Dryer
Dryer
Drum capacity
7.5 cu. ft.
212.38L
212.38L
Dry cycles
12x Preset drying cycles
Drying cycles: downloaded
Steam drying cycles: steam refresh, Steam Sanitize+
Sensor drying cycles: normal, heavy duty, perm press (permanent press), bedding, delicates, activewear
Manual drying cycles: time dry, air fluff, quick dry
Drying options: wrinkle prevent, adjust time (up), adjust time (down), eco dry, smart control, smart care, child lock, damp alert, alarm off
Dry levels: very dry, more dry, normal dry, less dry, damp dry
Drying cycles: downloaded
Steam drying cycles: steam refresh, Steam Sanitize+
Sensor drying cycles: normal, heavy duty, perm press (permanent press), bedding, delicates, activewear
Manual drying cycles: time dry, air fluff, quick dry
Drying options: wrinkle prevent, adjust time (up), adjust time (down), eco dry, smart control, smart care, child lock, damp alert, alarm off
Dry levels: very dry, more dry, normal dry, less dry, damp dry
Washer
Washer
Soil levels
Heavy
Medium Heavy
Normal
Medium Low
Light
Medium Heavy
Normal
Medium Low
Light
Wash cycles
12x Preset wash cycles
Eco cold wash
Normal
Heavy duty
Permanent press
Sanitize
Bedding
Bedding / waterproof
Activewear
Wool
Quick wash
Rinse + Spin
Delicates
Towels
Whites
Self Clean+
Downloaded
Eco cold wash
Normal
Heavy duty
Permanent press
Sanitize
Bedding
Bedding / waterproof
Activewear
Wool
Quick wash
Rinse + Spin
Delicates
Towels
Whites
Self Clean+
Downloaded
Body
Body
Dimensions (inches)
Washer: 27x38.7x33.5 (WxHxD)
Dryer: 27x38.7x31.7 (WxHxD)
Dryer: 27x38.7x31.7 (WxHxD)
Weight (lbs)
Washer: 214
Dryer: 123
Dryer: 123
Connectivity
Connectivity
Display
Display
Features
Features
Anti-crease function
Yes:
Wrinkle Prevent
Wrinkle Prevent
Accessories included
Power plug
Drain hose
Filter cover
Leveling feet
Drain filter
Emergency drain tube
Wrench
Bolt caps
Hose guide
Cable tie
Anti-slip pads
Lint filter
Exhaust duct
Y-connector
Water hose (Canadian elec. models only)
Short water hose
Drain hose
Filter cover
Leveling feet
Drain filter
Emergency drain tube
Wrench
Bolt caps
Hose guide
Cable tie
Anti-slip pads
Lint filter
Exhaust duct
Y-connector
Water hose (Canadian elec. models only)
Short water hose
Stackable
✓
Yes
Timer
Yes - remaining time display
Voice controls
Bixby
Amazon Alexa
Google Assistant
Amazon Alexa
Google Assistant
Variable temperature control
Washer:
Water Temperature Setting
Hot
Warmer
Warm
Cool
Cold
Dryer:
High
Medium high
Medium
Medium low
Low
Water Temperature Setting
Hot
Warmer
Warm
Cool
Cold
Dryer:
High
Medium high
Medium
Medium low
Low
Motor
Washer: direct drive motor
Warranty
Warranty
Device warranty
24 months
Extended warranty: click here
Extended warranty: click here
Power
Power
Washer:
CEE rating: tier 2
IMEF: 2.92
IWF: 2.9
kWh/cycle: 100
Energy guide label: 100 kWh/year
Energy gallons/year: 4235
ENERGY STAR Most Efficient
Cycle time (AHAM 8lbs): 45 min
Cycle time (Super Speed): 30 min
ADA compliant
Dryer:
ENERGY STAR Certified
ADA compliant
Cycle time (AHAM 8lbs): 75 min (42 min)
Heating element: 5300W/hr
Energy guide label: 2.15kWh
CEE rating: tier 2
IMEF: 2.92
IWF: 2.9
kWh/cycle: 100
Energy guide label: 100 kWh/year
Energy gallons/year: 4235
ENERGY STAR Most Efficient
Cycle time (AHAM 8lbs): 45 min
Cycle time (Super Speed): 30 min
ADA compliant
Dryer:
ENERGY STAR Certified
ADA compliant
Cycle time (AHAM 8lbs): 75 min (42 min)
Heating element: 5300W/hr
Energy guide label: 2.15kWh
Power source
Electric
Power supply
Washer: AC 120V 60Hz 15A
Dryer: AC 120V 240V 60Hz 30A
Dryer: AC 120V 240V 60Hz 30A
Washing Capacity
Washing Capacity
Washing capacity
5.0 cu. ft.
141.58L
141.58L
Performance
Performance
Cycle
Cycle
Option list
Washer:
Total: 10
Super speed
Smart control
Smart care
Child lock
Pre-soak
Delay end (24 hrs)
Steam
Alarm off
Total: 10
Super speed
Smart control
Smart care
Child lock
Pre-soak
Delay end (24 hrs)
Steam
Alarm off
Function
Function
Appliance features
Washer:
Super speed
Steam
Swirl+ drum interior
Self clean+
Interior drum light
Internal water heater
Door handle: visor
Integrated controls
Detergent: bleach, main, fabric softener
Tinted door
Dryer:
Steam Sanitize+
Vent sensor
Interior drum light
Lint filter indicator
Stainless steel drum
Vent blockage test
Drying rack
Dual heater
4-Way venting system
Door handle: visor
Integrated touch controls
Sound levels: on / off
Tinted door
Jog dial
Super speed
Steam
Swirl+ drum interior
Self clean+
Interior drum light
Internal water heater
Door handle: visor
Integrated controls
Detergent: bleach, main, fabric softener
Tinted door
Dryer:
Steam Sanitize+
Vent sensor
Interior drum light
Lint filter indicator
Stainless steel drum
Vent blockage test
Drying rack
Dual heater
4-Way venting system
Door handle: visor
Integrated touch controls
Sound levels: on / off
Tinted door
Jog dial
Delicate wash
✓
Yes
