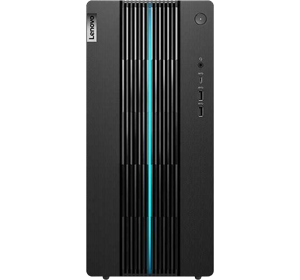

Lenovo IdeaCentre 5 17IAB7 Gaming Desktop
Search our help content
Search
Popular Topics
Your reference is:
Please quote your reference number if you need to contact us about your problem. It will help us pick up where you left off.
For an optimised experience at this window size, please refresh your browser.
For an optimised experience at this window size, please refresh your browser.
Motherboard
Motherboard
Chipset
Intel B660 Chipset
Body
Body
Dimensions (inches)
6.69x11.97x14.8 (WxDxH)
Weight (lbs)
18.52
Connectivity
Connectivity
Processor
Processor
Cooling system
1x 1x Front + 1x 1x Rear fans
Processor core count
12
Processor thread count
20
Model
Intel Core i7-12700
CPU speed
Up to 4.9GHz
Platform
Platform
Memory
Memory
Features
Features
Accessories included
USB Calliope Keyboard
USB Calliope Mouse
USB Calliope Mouse
Form factor
Tower (17L)
Security
Security
Security features
Firmware TPM 2.0 integrated in chipset
Graphics card
Graphics card
Model
NVIDIA GeForce RTX 3060 12GB GDDR6
Warranty
Warranty
Device warranty
24 months
Extended warranty: click here
Extended warranty: click here
Power
Power
Power supply
500W 92%
Sound
Sound
Audio details
High Definition (HD) Audio
Realtek ALC623-CG codec
Realtek ALC623-CG codec
Storage
Storage
Hard drive capacity
512GB M.2 2280 PCIe 3.0x4 NVMe SSD
1TB 7200rpm 3.5-inch HDD
1TB 7200rpm 3.5-inch HDD
Built-in Devices
Built-in Devices
Optical drive
✖
No
Key Information
Key Information
Type
Gaming Desktop PC
Interfaces/Ports
Interfaces/Ports
Ethernet port
✓
Yes
HDMI port
1x HDMI 2.0b
Headphone/Microphone
✓
Yes
USB port
Front:
1x USB-C 3.2 Gen 1 with data transfer support and 5V 3A charging
1x USB Type-A 3.2 Gen 1
1x USB Type-A 3.2 Gen 2
Rear:
4x USB Type-A 2.0
1x USB-C 3.2 Gen 1 with data transfer support and 5V 3A charging
1x USB Type-A 3.2 Gen 1
1x USB Type-A 3.2 Gen 2
Rear:
4x USB Type-A 2.0
Headphone jack
✓
Yes
VGA
✓
Yes
