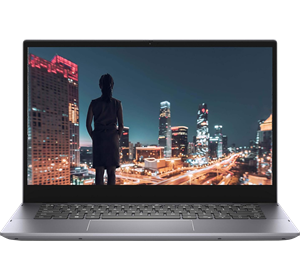

Dell Inspiron 14 5406 Laptop
Search our help content
Search
Popular Topics
Your reference is:
Please quote your reference number if you need to contact us about your problem. It will help us pick up where you left off.
For an optimised experience at this window size, please refresh your browser.
For an optimised experience at this window size, please refresh your browser.
Environmental
Environmental
Operational humidity
10% to 90% (non-condensing)
Operational temperature
0°C to 35°C
Battery
Battery
Body
Body
Dimensions (inches)
12.8x8.7x0.7 (WxHxD)
Weight (lbs)
3.79
Connectivity
Connectivity
Processor
Processor
Processor core count
4
Processor thread count
8
Model
Intel Core i7-1165G7
CPU speed
2.8GHz
Display
Display
Backlight technology
LED
Brightness
220 nits
HD Ready / Full HD / Ultra HD
Full HD
Pixel pitch (mm)
0.16
Pixels per inch
157
Response time
35ms
Touch screen
✓
Yes
Viewing angle
80°
Wide Viewing Angle
Wide Viewing Angle
Refresh rate
60Hz
Screen type
Glossy finish
Messaging
Messaging
Platform
Platform
Memory
Memory
Camera
Camera
Features
Features
Security
Security
Graphics card
Graphics card
Graphics card type
Shared
Integrated
Discrete
Integrated
Discrete
Model
Shared: Intel Iris Plus
Integrated: Intel Iris Xe Graphics
Discrete: NVIDIA GeForce MX 3330 2GB
Integrated: Intel Iris Xe Graphics
Discrete: NVIDIA GeForce MX 3330 2GB
Warranty
Warranty
Device warranty
24 months
Extended warranty: click here
Extended warranty: click here
Power
Power
Power source
Rechargeable battery
Power supply
Input: 100-240V AC 50-60Hz 1.5A
Output: 19.5V DC
Output: 19.5V DC
Speaker output
Average: 2W
Peak: 2.5W
Peak: 2.5W
Sound
Sound
Built-in speaker
✓
Yes
Audio details
MaxxAudio Pro
Realtek ALC3204
High-definition audio
Realtek ALC3204
High-definition audio
Number of speakers
2
Storage
Storage
Hard drive capacity
512GB SSD
Built-in Devices
Built-in Devices
Optical drive
✖
No
Interfaces/Ports
Interfaces/Ports
HDMI port
1x HDMI 1.4
Headphone/Microphone
✓
Yes
I/O expansion
1x M.2 2230 slot for Wi-Fi and Bluetooth
1x M.2 2280 slot for SSD/Intel Optane
1x M.2 2280 slot for SSD/Intel Optane
USB port
2x USB Type-A 3.1 Gen 1
1x USB 3.2 Type-C with DisplayPort
1x USB 3.2 Type-C with DisplayPort
