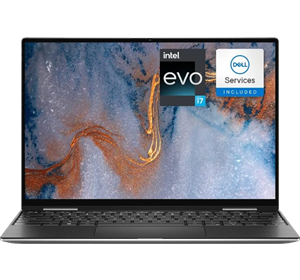

Dell XPS 13 9310 Touchscreen Laptop
Search our help content
Search
Popular Topics
Your reference is:
Please quote your reference number if you need to contact us about your problem. It will help us pick up where you left off.
For an optimised experience at this window size, please refresh your browser.
For an optimised experience at this window size, please refresh your browser.
Technical specifications
Technical specifications
Battery
Battery weight: 7.76oz
Battery voltage: 7.6V
Battery voltage: 7.6V
Charger
AC adapter power: 45W
AC adapter frequency: 50-60Hz
AC adapter input voltage: 100-240V
AC adapter output current: 2.25A
AC adapter output voltage: 20V
AC adapter frequency: 50-60Hz
AC adapter input voltage: 100-240V
AC adapter output current: 2.25A
AC adapter output voltage: 20V
Battery
Battery
Body
Body
Dimensions (inches)
11.6x0.58x7.82 (WxHxD)
Weight (lbs)
6.11
Connectivity
Connectivity
Processor
Processor
Processor core count
4
Model
Intel Core i7-1185G7
Intel Core i7-1195G7
Intel Core i7-1195G7
CPU speed
Up to 4.8GHz
Display
Display
Platform
Platform
Sensors
Sensors
Memory
Memory
Camera
Camera
Features
Features
Security
Security
Graphics card
Graphics card
Graphics card type
On-board
Model
Intel Iris Xe Graphics
General
General
Operating temperature (T-T): 32 - 55°F
Storage temperature (T-T): -40 - 149°F
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: -598.4 - 120000 inches
Non-operating altitude: -598.4 - 420000 inches
Operating shock: 110G
Non-operating shock: 160G
Operating vibration: 0.66G
Non-operating vibration: 1.3G
Storage temperature (T-T): -40 - 149°F
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: -598.4 - 120000 inches
Non-operating altitude: -598.4 - 420000 inches
Operating shock: 110G
Non-operating shock: 160G
Operating vibration: 0.66G
Non-operating vibration: 1.3G
Type
Notebook
Warranty
Warranty
Device warranty
24 months
Extended warranty: click here
Extended warranty: click here
Sound
Sound
Speaker type
MaxxAudio Pro
Realtek ALC3281-CG chip
Realtek ALC3281-CG chip
Number of speakers
2
Audio Power
2W
Function
Function
Appliance features
sRGB
Infrared camera
4267MHz memory clock speed
Configurable TDP-up frequency: 3GHz
Configurable TDP-up: 28W
Configurable TDP-down: 12W
Configurable TDP-down frequency: 1.2GHz
Thunderbolt technology
Intel Trusted Execution Technology
Intel VT-x with Extended Page Tables (EPT)
Intel Stable Image Platform Program (SIPP)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Virtualization Technology (VT-x)
Infrared camera
4267MHz memory clock speed
Configurable TDP-up frequency: 3GHz
Configurable TDP-up: 28W
Configurable TDP-down: 12W
Configurable TDP-down frequency: 1.2GHz
Thunderbolt technology
Intel Trusted Execution Technology
Intel VT-x with Extended Page Tables (EPT)
Intel Stable Image Platform Program (SIPP)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Virtualization Technology (VT-x)
Storage
Storage
Hard drive type
NVMe PCIe SSD
Hard drive capacity
512GB
1TB
1TB
Built-in Devices
Built-in Devices
Built-in microphone
Yes - 2
Built-in speakers
Yes - 2
Interfaces/Ports
Interfaces/Ports
Ethernet port
✖
No
HDMI port
✖
No
Headphone/Microphone
Yes - 1x combo headphone/mic port
USB port
2x USB4 Gen 3x2
